Mixer Grinder Flier Fork Armature Winding Fully Automatic Winder Machine

Mixer Grinder Flier Fork Armature Winding Fully Automatic Winder Machine
Mixer Grinder Flier Fork Armature Winding Fully Automatic Winder Machine Mixer Grinder Flier Fork Armature Winding Fully Automatic Winder Machine

Large Image :  Mixer Grinder Flier Fork Armature Winding Fully Automatic Winder Machine Get Best Price

Product Details:
Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: stator winding, armature winding, welding
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Detailed Product Description

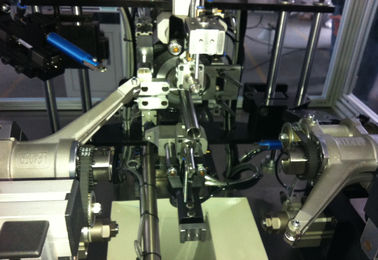

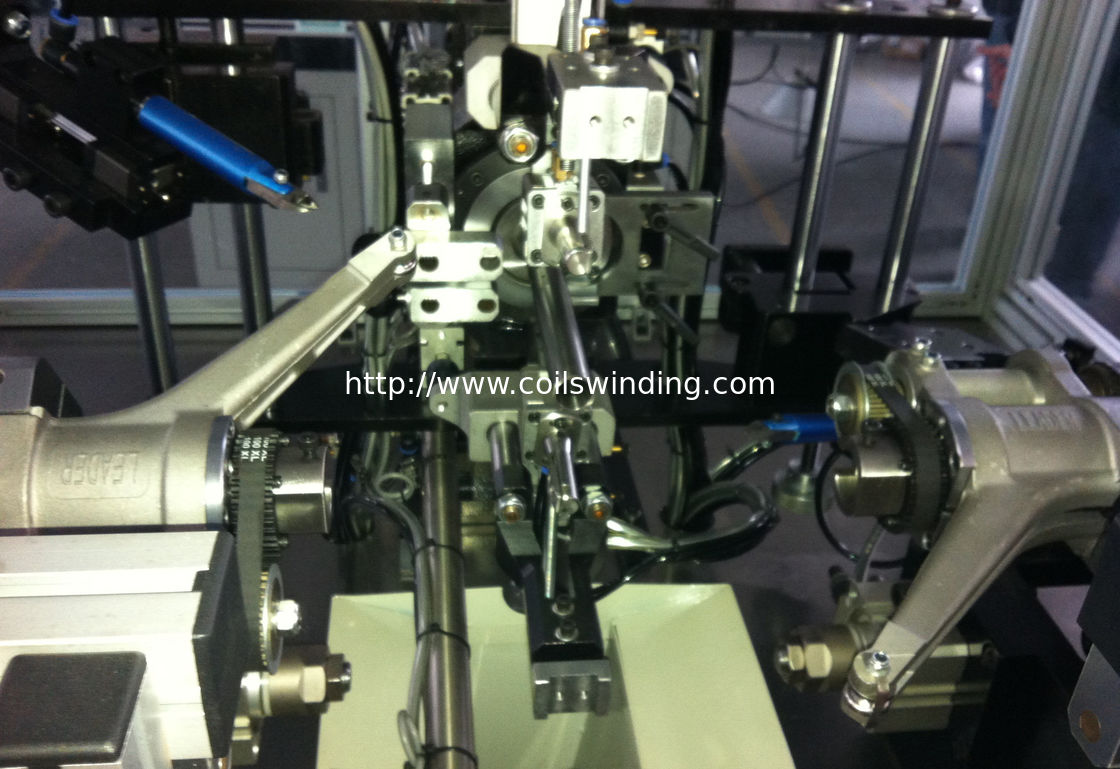

Mixer Grinder Flier Fork Armature Winding Fully Automatic Winder Machine

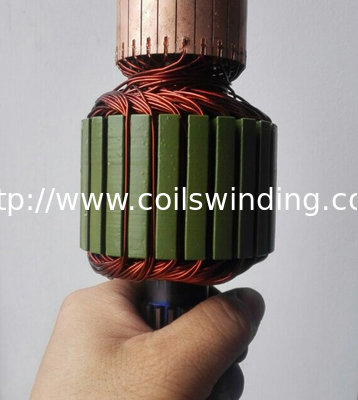

Wind the coils of armature for micro motor such as series motor, power tools,mixer,blender,car motor etc.

With Japanese brand PLC control system and servo system

Main parameter:

Wire diameter range: 0.16~1.2 mm (We have special made machine for thin wire armature)
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1

Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm

HS code: 8479811000
