Insulation paper forming machine for Two pole stator Slot liners production equipment

China Insulation paper forming machine for Two pole stator Slot liners production equipment supplier
Insulation paper forming machine for Two pole stator Slot liners production equipment supplier Insulation paper forming machine for Two pole stator Slot liners production equipment supplier

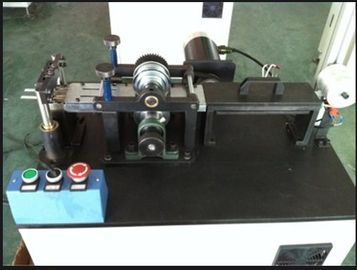

Large Image :  Insulation paper forming machine for Two pole stator Slot liners production equipment

Product Details:

Place of Origin: Chinese plant motor manufacturing Slot insulation
Brand Name: Wind Automation
Model Number: WIND-SCF slot liners manufacturing machine

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Delivery Time: 45 days
Payment Terms: T/T, L/C,
Contact Now
Detailed Product Description

Insulation paper forming machine for Two pole stator Slot liners production equipment  WIND-SCF Form and cut the insulation paper for universal motor stator, cell insulation such as mixer,grinder,power tools,

Insulation paper forming machine for Two pole stator Slot liners production equipment

Insulation paper forming machine for Two pole stator Slot liners production equipment



Main technical data:

Armature O.D: Ф20-55mm

Length of lamination: Max 60mm

Shaft length: 32~250mm

Shaft O.D: Ф6~Ф20mm

Slot number: 8-24 slots

Commutator O.D: Ф16~Ф50mm

Speed regulation range: 0~60Hz

Length of insulation paper: 15-60mm adjustable

Thickness of insulation paper: 0.1 mm ~ 0.5 mm

Type of insulation material: DMD, DM, Polyester film(thickness 0.125mm), etc.

Insulation paper shape: V or edge-folding V

Efficiency: 0.5sec - 0.8sec/per slot, loading



Video:

Universal motor two pole stator paper forming machine working film
