Starter motor armature slot liner paper inserting machine Auto Industry Armature manufacturing

China Starter motor armature slot liner paper inserting machine Auto Industry Armature manufacturing supplier
Starter motor armature slot liner paper inserting machine Auto Industry Armature manufacturing supplier Starter motor armature slot liner paper inserting machine Auto Industry Armature manufacturing supplier

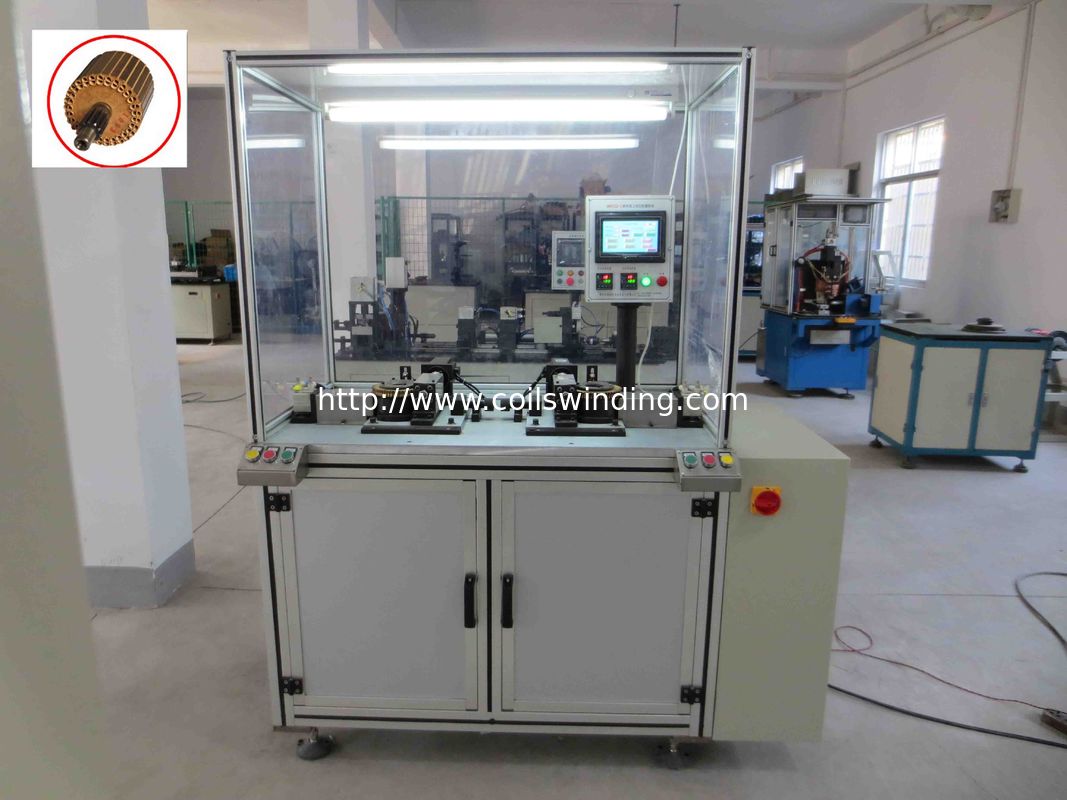

Large Image :  Starter motor armature slot liner paper inserting machine Auto Industry Armature manufacturing

Product Details:

Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Model Number: Starter production equipment supplier

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Delivery Time: 60 working days
Payment Terms: T/T, L/C,
Contact Now
Detailed Product Description
Paper Inserting Type: Auto Industry Armature With S Type , B Type,O Type Armature Slot Liner Station: Two Station, One Station Available
Starter Armature Paper Inserting: Feed,cut And Form The Paper With Servo Device Ensure Insulation Placement Accuracy

Machine is for automobile starter motor armature slot insulation, it automatic forming shaping the s shape cell and insert to starter armature,

Features:

Paper automatic heating, shaping, cutting off and insertion,automatic indexing,

view two station machine wokring video with high efficiency inserting auto industry armature



Starter motor armature slot liner paper inserting machine Auto Industry Armature manufacturing

Armature paper inserting machine Technical Parameter:

Insulation material thickness: 0.18~0.2mm

Armature stack height: Max 100mm

Power Supply: 220V±10%  50Hz

Air source Pressure: 0.5~0.7Mpa

Heating temperater: 70~100℃

Weight: Around 700KGS

Dimension: 1200*650*1500mm



Below information are required when you send the inquiry

1. How many types armature do you have,

2. Armature laminaton drawings
3. Paper drawing and material,

You may also interest in starter coil forming machine
