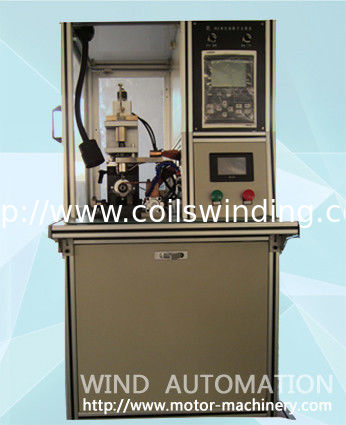

Car sunroof skylight motor commutator spot welding machine high quality assurance

China Car sunroof skylight motor commutator spot welding machine high quality assurance supplier

Large Image :  Car sunroof skylight motor commutator spot welding machine high quality assurance

Product Details:

Place of Origin: Chinese machine for producing DC armature electric motor
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: WIND-DC-CW002 hot staking stator winding, armature winding, welding

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Delivery Time: Armature hot staking machine
Payment Terms: weld and fuse the commutator of motor of the power tool,mixer
Supply Ability: DC power supply starter motor of the automobile.
Contact Now
Detailed Product Description

Application:

Hook type riser type slot type Commutator hot stacking soldering welding machine with DC power supply WIND-DC-CW002 is suitable for high quality requirement armatures,

such as the Automobile skylight motor,Car sunroof motor armature and so on

HS Code:8515800090



Power supply performance

Control mode:

1.Secondary define current effective value;welding current is the define current

2.Secondary define voltage effective value:the voltage detected by V sensing coil in inter-electrode is the define current

3.Secondary define power effective value: power value is the define power

4. Combination control mode

Time setting:

Initial forcing(SQ TIME):0000~9999ms( unit 1ms)

Up slope  1 (R1):00.0~99.9ms(unit 0.2ms)

Electrify 1(WE1):000.0~300.0ms (unit 0.2ms)

Down slope 1(D1):00.0~99.9ms (unit 0.2ms)

Stop(COOL) : 00~99ms (unit 1ms)

Up slope 2 (R2):    00.00~99.9ms (unit 0.2ms)

Electrify 2 (WE2):  000.0~300.0ms (unit 0.2ms)

Down slope 2 (D2):  00.0~99.9ms (unit 0.2ms)

Hold (HO TIME):    0000~9999ms (unit 1ms)

Electrify time include up slope and down slope

Current Range:0.5~50kA

Voltage range:0.1~9.99V

Power range: 1.00~99.99kW

Monitor set range:

Current set range: 00.00~99.99Ka (unit 0.01kA)

Voltage set range: 00.00~99.99V (unit 0.01V)

Power set range: 00.00~99.99kW (unit 0.01kW)

Weight: 18KGS

Transformer type : PIT-812A, 40KVA Max current output 15000A

Input Inverter voltage frequency 1~5KHZ

Initial input voltage: 520V

Secondary no-load voltage13.5V

Cooling method: water cooling

Weight:520KGS
