Slot liners production equipment for two pole stator for two pole stator WIND-SCF

China Slot liners production equipment for two pole stator for two pole stator WIND-SCF supplier

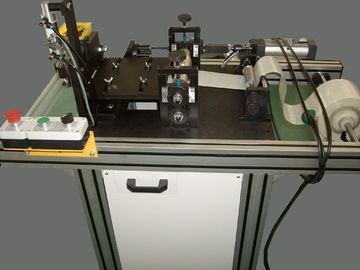

Large Image :  Slot liners production equipment for two pole stator for two pole stator WIND-SCF

Product Details:

Place of Origin: Chinese plant motor manufacturing Slot insulation
Brand Name: Wind Automation
Model Number: WIND-SCF slot liners and slot wedges

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Contact Now
Detailed Product Description

Two poles stator slot cell production machine WIND-SCF form and cut the insulation paper for universal motor stator, cell insulation such as mixer,grinder,power tools,

Slot liners production equipment for two pole stator for two pole stator WIND-SCF

Slot liners production equipment for two pole stator for two pole stator WIND-SCF

Main data:

Armature O.D: Ф20-55mm

Length of lamination: Max 60mm

Shaft length: 32~250mm

Shaft O.D: Ф6~Ф20mm

Slot number: 8-24 slots

Commutator O.D: Ф16~Ф50mm

Speed regulation range: 0~60Hz

Length of insulation paper: 15-60mm adjustable

Thickness of insulation paper: 0.1 mm ~ 0.5 mm

Type of insulation material: DMD, DM, Polyester film(thickness 0.125mm), etc.

Insulation paper shape: V or edge-folding V

Efficiency: 0.5sec - 0.8sec/per slot, loading



Video:

https://vimeo.com/106468848
