DC motor armature coil winding machine WIND-STR

China DC motor armature coil winding machine WIND-STR supplier

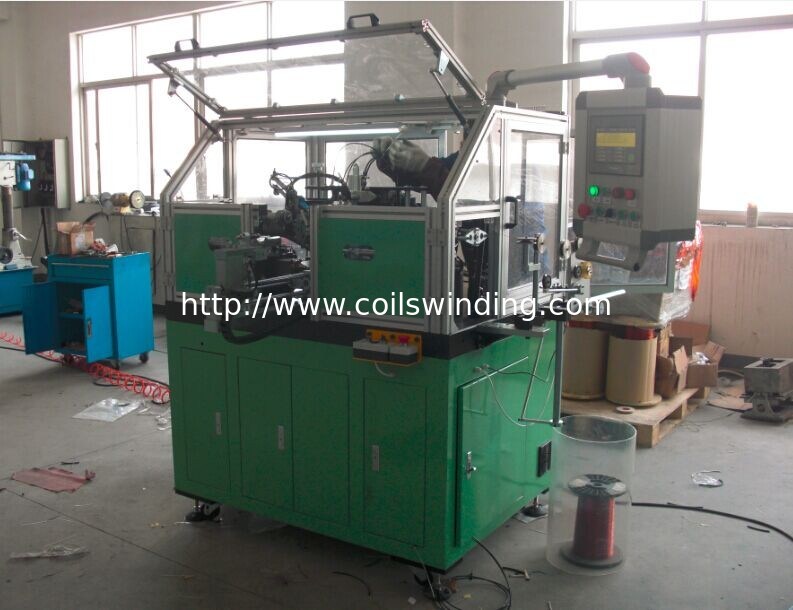

Large Image :  DC motor armature coil winding machine WIND-STR

Product Details:

Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: stator winding, armature winding, welding

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Contact Now
Detailed Product Description

WIND-STR Armature winding machine Wind the wire of armature for micro motor such as series motor,house hold appliances motor power tools,mixer,blender,car motor etc.

With Japanese brand PLC control system and servo system, this machine is the best sold in continuous 5 years!

https://vimeo.com/123798436  is the demo for the winding process, this machine is popular in many countries for the customers who produce commutator armature!

DC motor armature coil winding machine WIND-STR

DC motor armature coil winding machine WIND-STR

DC motor armature coil winding machine WIND-STR

DC motor armature coil winding machine WIND-STR

Main parameter:

Wire diameter range: 0.16~1.2 mm
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1

Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm

Package size 1800*1510*1920mm = 5.2 CBM

HS code: 8479811000
