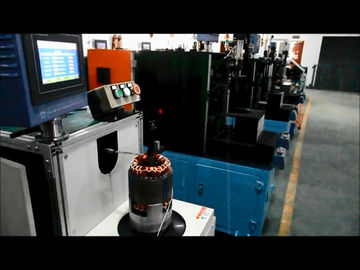

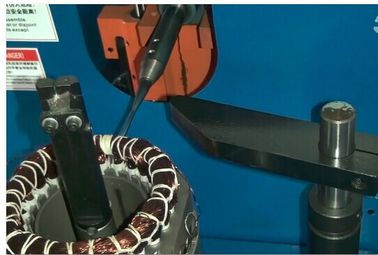

Table fan pump motor Stator coil single side lacing coils binding machine

China Table fan pump motor Stator coil single side lacing coils binding machine supplier
Table fan pump motor Stator coil single side lacing coils binding machine supplier Table fan pump motor Stator coil single side lacing coils binding machine supplier

Large Image :  Table fan pump motor Stator coil single side lacing coils binding machine

Product Details:

Place of Origin: table fan production equipment China supplier

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Contact Now
Detailed Product Description

Parameter:
Thickness of stator lamination: 10mm-100mm
Min stator ID: Φ 35mm

Max coil height: 40mm
Max outer diameter of stator: Φ 160mm
Lacing speed: around 0.7s per slot
Power supply Input: 220V/50Hz,60Hz
Air pressure: 0.5 to 0.8MPa
Dimension: 1000mm × 600mm × 1150mm
Weight: ≈ 600kg



Video:

https://vimeo.com/127221008
