Muti coils winding machine E-bike wheel motor winding Brushless hub motor stator

China Muti coils winding machine E-bike wheel motor winding Brushless hub motor stator supplier
Muti coils winding machine E-bike wheel motor winding Brushless hub motor stator supplier Muti coils winding machine E-bike wheel motor winding Brushless hub motor stator supplier Muti coils winding machine E-bike wheel motor winding Brushless hub motor stator supplier

Large Image :  Muti coils winding machine E-bike wheel motor winding Brushless hub motor stator

Product Details:

Place of Origin: ebike motor winding China supplier
Brand Name: Wind Automation
Certification: BLDC E-bike winding muti coils winding
Model Number: electrical bike motor winding machine

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: In USD
Packaging Details: Polywood case
Delivery Time: 45 working days
Payment Terms: T/T is prefered, L/C is acccpetable
Supply Ability: Electric hub motor stator winding
Contact Now
Detailed Product Description

Advantages:

Could save 6% to 15% copper wire, around  7 mintues per 2pcs



Parameter

Stator OD:40-265mm

Core length: 6-75mm

Slots Number: max 63

Max wires numbers winding at one time: 15 pieces

Time for stator winding: 54 slots, 11 pieces wire for one time winding, including loading/unloading, it takes 7 minutes for 2 pieces stator

Around 130pcs/ shift (8hours)



Configuration:

PLC: DELTA

Winding servo motor: MITSUBISHI

Indexing servo motor: MITSUBISHI

Wire arraying servo motor: MITSUBISHI

HMI: DELTA

Buttons: SCHNEIDER



Video:

http://www.vimeo.com/123941149

The machine working for this E-bike motor manfaucuring plant with prodution 90% percent pass

https://vimeo.com/143262581

Photos:

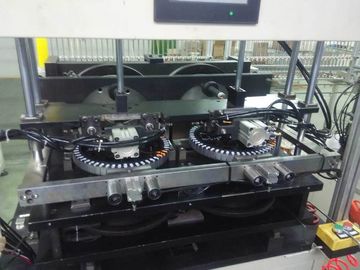

Muti coils winding machine E-bike wheel motor winding Brushless hub motor stator

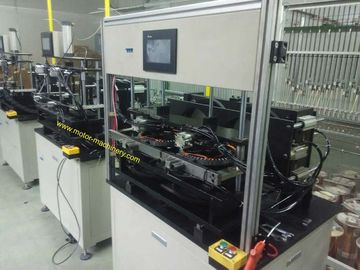

Muti coils winding machine E-bike wheel motor winding Brushless hub motor stator
