Universal motor two pole stator field coil winding machine mixer grinder power tool vacuum cleaner

China Universal motor two pole  stator field coil winding machine mixer grinder power tool vacuum cleaner supplier
Universal motor two pole  stator field coil winding machine mixer grinder power tool vacuum cleaner supplier Universal motor two pole  stator field coil winding machine mixer grinder power tool vacuum cleaner supplier Universal motor two pole  stator field coil winding machine mixer grinder power tool vacuum cleaner supplier

Large Image :  Universal motor two pole stator field coil winding machine mixer grinder power tool vacuum cleaner

Product Details:

Place of Origin: Chinese machine for producing stators and rotors
Brand Name: Wind Automation
Certification: Excited motor stator production
Model Number: WIND-SW-2 Two pole stator winding machine

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Delivery Time: 45 working days
Payment Terms: T/T, L/C,
Contact Now
Detailed Product Description
Stator Filed Coil Winding: Two Poles Universal Otor Stator Winding 2poles Stator Application: Mixer,grinder,power Tool,vacuum Cleaner Motor Stator
Stator Coil Winding: Stator Field Coil Needle Winding Winding Station: 2 Working Station

Manually load the tooling, clamp the wire, automatically finish the winding, refer to Woking video

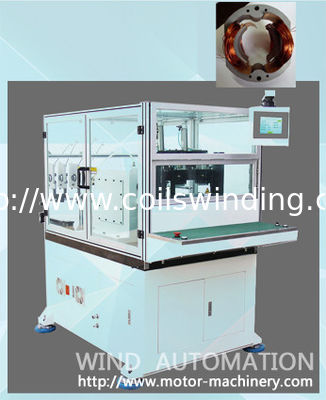

Stator field coil  winding machine apperance from different aspect





2 pole stator needle winding machine tooling

Universal motor two pole  stator field coil winding machine mixer grinder power tool vacuum cleaner



Stator filed coil winding machine application Mixer,grinder,powder tooling,vacuum cleaner motor 2pole stator
Winding type Needle winding not flyer winding
Stator winder process Manual load on stator, automatic winding, manual unloading

Stator winding machine Main Parameter:

Wire range: 0.15—1.3mm

Stack length: 20—60mm

Pole: 2

Turns range: 0—99999

Stator O.D: 50—150mm

Main spindle speed: 0—450RPM

Air pressure: 5-7kg/cm2

Voltage:415v/3, 50/60HZ

Motor power: 4.5KW

Weight: 1.2T

Dimension: 1050*2300*1750mm

NCM No / HS Code: 8479811000



You may also have interest in fully automatic winding machine

with automatic loading,clamping, winding, taping, unloading machine
