E-Bike Stator Coil Winding: Brushless Hub Motor Stator Muti Coil Winding Brushless Hub Motor Winding: Muti Parallel Wires Coils Winding
BLDC E-bike Winding Muti Parallel Wires Coils: 15 Parallels Wires 0.5mm Copper Coils Winding

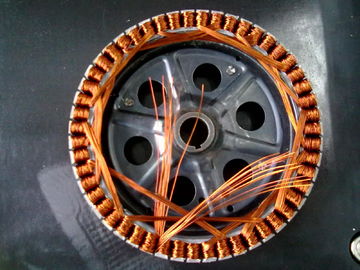

Brushless hub motor stator winding BLDC E-bike winding muti coils winding

Advantage:

Could save 6% to 15% copper wire, around 8 mintues per piece

Electric hub motor stator winding  (Video show the process of BLDC E-bile winding) produce wheel motor stator with  muti wire  coils winding,

Brushless hub motor stator winding BLDC E-bike winding muti parallel wires coils winding machine



E-Bike OD size Slots Winding Way
198mm(7.8inch) 51 slots 3-3-3-4-4
254mm(10 inch) 54 slots 3-3-3-3-3-3
305mm (12 inch) 63 slots winding way 3-3-3-3-3-3-3
insulation paper's thickness is 0.18~0.20mm   Three - phase Y - type connection , Two sine wave






Parameter:

Stator OD:40-265mm

Core length: 6-75mm

Slots Number: max 63

Max wires numbers winding at one time: 15 pieces

Time for stator winding: 54 slots, 11 pieces wire for one time winding, including loading/unloading, it takes 7 minutes for 2 pieces stator

Around 130pcs/ shift (8hours)



Composition:

PLC: DELTA

Winding servo motor: MITSUBISHI

Indexing servo motor: MITSUBISHI

Wire arraying servo motor: MITSUBISHI

HMI: DELTA

Buttons: SCHNEIDER



Brushless hub motor stator winding BLDC E-bike winding muti parallel wires coils winding machine

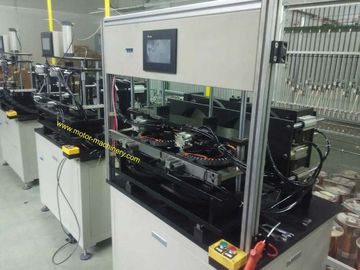

Double station muti parallel wires coil winding machine



Brushless hub motor stator winding BLDC E-bike winding muti parallel wires coils winding machine

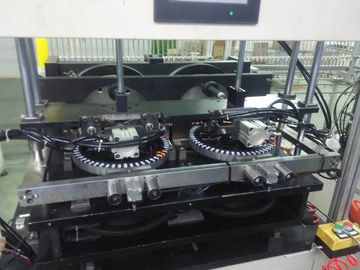

Hub motor winding machines for E-Bike motor muti wires winding





Brushless hub motor stator winding BLDC E-bike winding muti parallel wires coils winding machine



One local customer purchase 1pc at first, then after smooth produce the wheel motor for some time,

they put order for 12pcs again, this is a video in customer's plant https://vimeo.com/123941149




Contact:Shanghai Wind Automation Equipment Co.,Ltd

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com
