Starter armature coil conductor hairpin forming winding machine for auto industry Forklift truck

China Starter armature coil conductor hairpin forming winding machine for auto industry Forklift truck supplier
Starter armature coil conductor hairpin forming winding machine for auto industry Forklift truck supplier Starter armature coil conductor hairpin forming winding machine for auto industry Forklift truck supplier Starter armature coil conductor hairpin forming winding machine for auto industry Forklift truck supplier Starter armature coil conductor hairpin forming winding machine for auto industry Forklift truck supplier Starter armature coil conductor hairpin forming winding machine for auto industry Forklift truck supplier

Large Image :  Starter armature coil conductor hairpin forming winding machine for auto industry Forklift truck

Product Details:

Place of Origin: Automobile starter armature manufacturing equipment supplier
Brand Name: Wind Automation
Certification: Machine Shape the wire for starter armature, for diesel power generation and Gasoline Power Generati
Model Number: WIND-AWF starter motor armature manufacturing equipment

Payment & Shipping Terms:

Minimum Order Quantity: conductor forming machine 1pc
Payment Terms: T/T, L/C,
Contact Now
Detailed Product Description
Starter Armature Conductor Production: Starter Armature For Auto Industry Forklift Truck Coil Forming: Coil Conductor Hairpin Forming Winding Machine
Application: Auto Industry Automotive Forklift Truck

Starter armature conductor hairpin Coil Forming starter armature coil winding machine for auto industry Forklift truck

WIND-AWF Series flat wire forming machine for starter armature coil forming of Forklift truck and vehicles diesel ,coil winding machine



Conductor hairpin forming machine Advantages:



1. Cycle time Around 3s/pc,

2. Mitsubishi PLC, Weinview touch screen,Airtac cylinder and valve,Schneider Electrical components





Application:

Form wire starter motor, forklift truck,vehicles diesel's armature flat wire production,

automatic straighten alignment, peel enamel,loading,cutting and forming, unloading.

Produce coils winding for the starter armature



Armature hairpin forming machine Specification



Power Supply Voltage: 3Φ-380V±10% 50H

Air source Pressure: 0.5~0.7Mpa

Varnish Removing Length: 0~50mm

Wire Feeding Length: 150~400mm

Rated Capacity: 1kva




Conductor hairpin forming winding machine Configuration:
Mitsubishi PLC
Weinview touch screen
Korea SPG enamel remover
Airtac penumatic unit
Schneider electronic unit



Hairpin forming machine Click below photo to watch Video:

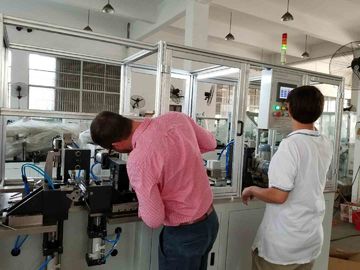

Starter armature coil conductor hairpin forming winding machine for auto industry Forklift truck



Starter armaure conductor coil winding forming process video

https://vimeo.com/144114802

You may also interest in starter armature slot insulation



Starter armature coil conductor hairpin forming winding machine for auto industry Forklift truck

Flat wire starting motor armature conducor produced by Starter armature coil conductor hairpin forming winding machine China



Starter armature coil conductor hairpin forming winding machine for auto industry Forklift truck
