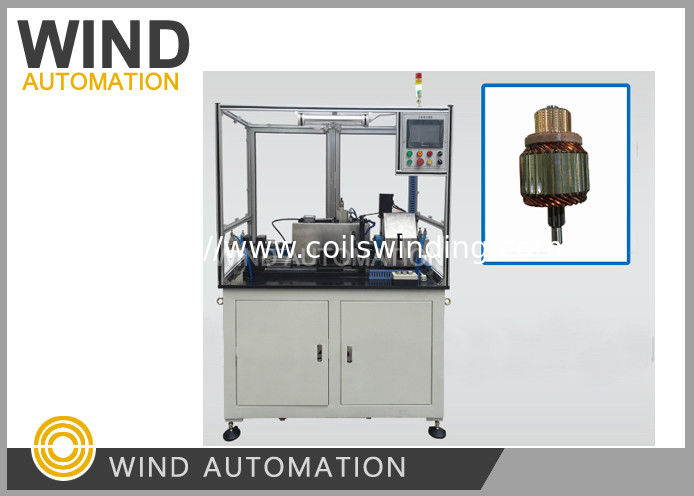

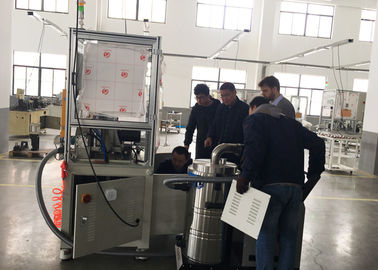

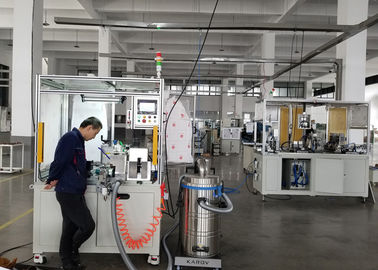

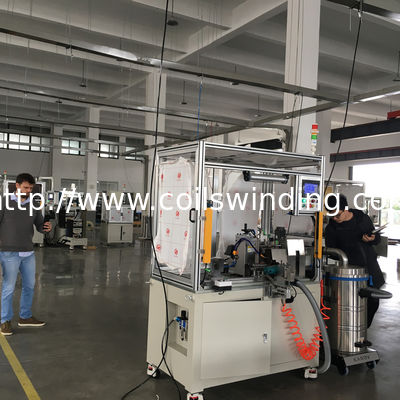

PLC Control Armature Commutator Mica Wire Slotting Machine
is used primarily for undercutting mica of commutators,
Undercutting differs from ordinary machining in that, instead of shearing, it is a combination of crushing, grinding, and conveying.




(1) Technical Data

WIND-CU-8066       WIND-CU-8066
2~99       2~99
3000~5000RPM Adjustable       3000~5000RPM Adjustable
30-80mm       30-80mm
<100mm       <100mm
380V       380V
3KW
<100mm       <100mm
10 Sets So only 10 differents kinds of armatures Can we make a store setup....is that right? Yes, only 10 kinds can be stored in touch screen We need at least 50 recipes With 50 Recipies
<200mm We have armature lenght from 142 up to 450mm. (shaft lenght) The size is over standard range, a custom made undercutting machine is needed,   Able to use big armatures up to 450mm shaf lenght
Yes, industrial vacuum clearner is included in Wind Automation offer       industrial vacuum clearner is included in Wind Automation offer
The cutter Lifting action can ensure no burrs Please send me videos or more details Please check the video
(Armature shaft size below 18mm)
  The cutter Lifting action can ensure no burrs
About 1 minutes (For each slot 2~3 seconds)       Production about 60 pieces per hour for a 25 slots armature
Cutter       Please inform how many spares of cutters 2pcs
SMC       SMC
PLC Tell me the PLC brand PLC brand is Mitsubishi   PLC MITsubishi
        Aluminium Profiles, stainless steel and steel sheet OK
You can choose from www.ralcolor.com       RAL 9001 OK
Safety curtain       Safety curtain OK
1300*950*1950mm       1300*950*1950mm 1400*1000*1950mm
60days       60days 90days
15 Month from B/L date       15 Month from B/L date


(2) Competitive Advantages

1. With Mitubishi PLC
2. Rise the cutter before slotting to prevent burr
3. The burr remover device can be added on tailor made machine
4. Machine has the device the recipe must allow to set number of revolution of the armature
while the device is turned on. For example, the armature spins three times CW and three CCW


(3) Armature handled by mica undercutting machine

For armature upto 450mm length, no problem for undercutting machine ,
the standard machine transmission mechanism might and part of machine configuration
should be changed to meet the biggest armature size and weight requirement.




(4) Attention points
1. We can modify the program of machine to let it have more recipes per your requirement
such as 30 recipes
2. Can add a device on the undercutting machine that sands the commutator after the undercutting
process,this process can ensure that the commutator will not have any kind of burrs



Mica is very abrasive and varies in hardness, making necessary the very best design and production controls

in the manufacture of undercutting cutters and saws.
