Car motors oil pump motor rotor automatic DMD paper inserting machine

: Large Image : Car motors oil pump motor rotor automatic DMD paper inserting machine

Product Details:

Place of Origin:	Starter armature making machine from China
Brand Name:	Wind Automation
Certification:	Two station to insert slot cell to starter armature
Model Number:	starter motor armature manufacturing equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Payment Terms:	T/T, L/C,

Contact Now

Detailed Product Description

Advantages:

Paper automatic heating, shaping, cutting off and insertion,automatic indexing

The cuffs can prevent insulation paper from vibratation when inserting copper windings.

Parameters:

Servo motor: Delta or Mitsubishi

PLC: Mitsubishi

Pneumatic system :Airtac

Electronic unit:Schneider

Technical Parameter:

Insulation material thickness: 0.18~0.2mm

Armature stack height: Max 100mm

Power Supply: 220V±10% 50Hz

Air source Pressure: 0.5~0.7Mpa

Heating temperater: 70~100℃

Weight: Around 700KGS

Dimension: 1200*650*1500mm

Video:

automobile starter motor armature slot insulation

(video shows it automatic forming shaping the s shape cell and insert to starter armature)

Photos:

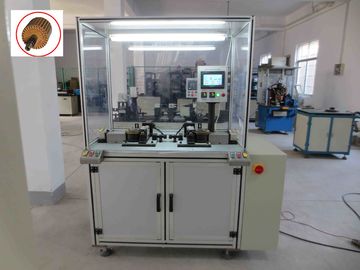

Car motors oil pump motor rotor automatic DMD paper inserting machine

Contact:Emily

Email:emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com
