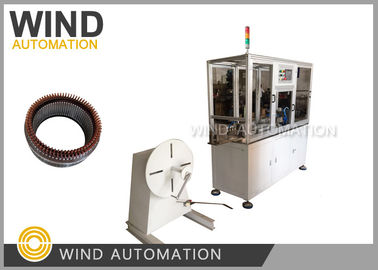

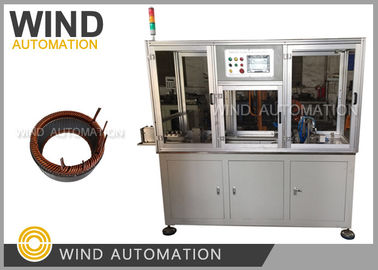

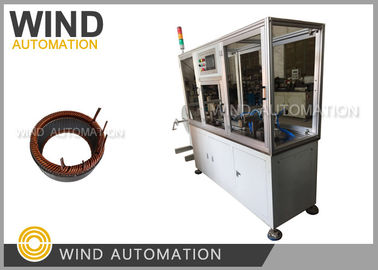

Generator Motor Coil Hair Pin Forming Machine For Auto Industry Aerospace WIND-NBX

China Generator Motor Coil Hair Pin Forming Machine For Auto Industry Aerospace WIND-NBX supplier
Generator Motor Coil Hair Pin Forming Machine For Auto Industry Aerospace WIND-NBX supplier Generator Motor Coil Hair Pin Forming Machine For Auto Industry Aerospace WIND-NBX supplier Generator Motor Coil Hair Pin Forming Machine For Auto Industry Aerospace WIND-NBX supplier

Large Image :  Generator Motor Coil Hair Pin Forming Machine For Auto Industry Aerospace WIND-NBX

Product Details:

Place of Origin: Areospace Automobile starter armature manufacturing equipment supplier
Brand Name: Wind Automation
Certification: Machine Shape the wire for starter armature, for diesel power generation and Gasoline Power Generate
Model Number: WIND-NBX bare wire shaping starter motor armature manufacturing equipment

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Payment Terms: T/T, L/C,
Detailed Product Description
Hairpin Winding: Without Enamel Remove Coil Application: Auto Industry, Aerospace

Starter Generator Motor Coil Hair Pin Forming Machine For Auto Industry Areospace


Application:Automotive motors, pure electric vehicles, hybrid electric vehicles, electric forklifts,

electric tricycles, tourist vehicles, electric tools and automobile motors



1. Machine application

Flat wire hairpin forming WIND-NBX is a custom made machine

According to requirements

The machine automatic dereeling,straighten, press,

pull and cut wire



2. Machine detail content

1) Automatic wire feeding dereeling device which can feed or stop to feed wire

with sensor,when wire was press, sensor can detect and feed wire,

when there is no wire, pause to feed



2) Wire straighten device with X,Y two direction guide wheel

straightening mechanism, so when wire is pulled at same time straighten



3) Pull wire device consist of pull press wire mechanism and pull wire

mechanism. The pull press wire cylinder and press fixture are assembled on

slideway, the servo motor for feeding wire and ball screw rod work together to

pull wire, length of wire pulled can be set on touch screen



4) Cutting device composed of cut press wire mechanism and cut mechanism,

To prevent wire vibrate, use press cylinder and press tooling to fix the wire,cut the wire with four cutters, at same time remove burr during cutting



5) Wire bend device , the wire bend press cylinder press the wire, then

Bend cylinder move gear to bend, after bend loose bend press cylinder,

bend cylinder return, feed wire to needed length again

(If your wire length is long, so two times feeding is required),

Then cut wire and unload automatically



3. Electronic parts

1) Simens PLC and HMI with touch screen

2) Servo motor Delta

3) Low voltage electrical appliance Delixi

4) Pneumatic components Airtac



4. Machine space required

Wire frame length 700mm

Machine Lenth 2000mm Width 620mm Height 1700mm



Contact:emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.statorwindingmachine.com

Starter armature coil maker winding forming machine WIND-AWF Shanghai Wind Automation Equipment Co.,Ltd from EmilyGao of coils winding supply on Vimeo.
