Slot insulation barrier between the copper wndings and the steel lamination for stator grooves

China Slot insulation barrier between the copper wndings and the steel lamination for stator grooves supplier
Slot insulation barrier between the copper wndings and the steel lamination for stator grooves supplier Slot insulation barrier between the copper wndings and the steel lamination for stator grooves supplier Slot insulation barrier between the copper wndings and the steel lamination for stator grooves supplier

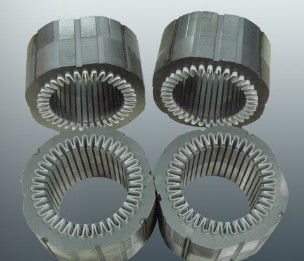

Large Image :  Slot insulation barrier between the copper wndings and the steel lamination for stator grooves

Product Details:

Place of Origin: slot insulation for electric motors China supplier
Brand Name: Wind Automation
Model Number: paper inserting slot insulation

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: 6000 USD
Packaging Details: Polywood case
Payment Terms: T/T, L/C,
Contact Now
Detailed Product Description
Motor Stator Insulation: Insert The Paper To Stator Groove Slot Insulation: Pump Compressor Washing Machine Induction Motor Slot Insulation

Slot insulation barrier between the copper wndings and the steel lamination for stator grooves  Specification:

Laminated thickness of stator

Lamina espessura: 10mm-60mm

Max outer diameter of stator: Φ 160mm
Diameter of stator: Φ 40mm- Φ 80mm
Height of edge folded: 2.5mm-4mm
Max insulation paper's thickness: 0.35mm
Feeding length: 12mm-45mm
Tack time: 0.5-0.7s/slot
Input: 380V/50Hz
Power: 0.75KW
Machine productivity: around 1500pcs/8hours
Dimension: 1150mm × 1000mm × 1500mm

Weight: ≈ 400kg

Video:

http://www.vimeo.com/125464089

Insert insulation paper polyester to stator's slot to insulate the stator stack and winding.

Alta eficiencia, tecnología avanzada, estable performance.Help a reducir costes mientras mantienen la alta calidad
