Stator Winding and wedge insertion machine install wedge 10mm and coils with servo system

China Stator Winding and wedge insertion machine install wedge 10mm and coils with servo system supplier
Stator Winding and wedge insertion machine install wedge 10mm and coils with servo system supplier Stator Winding and wedge insertion machine install wedge 10mm and coils with servo system supplier

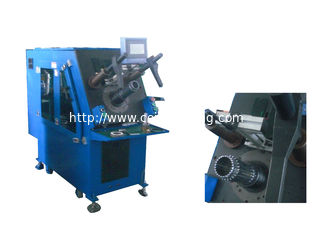

Large Image :  Stator Winding and wedge insertion machine install wedge 10mm and coils with servo system

Product Details:

Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Model Number: winding and wedge inserting machine

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: wedge and coil inserter polywood case
Delivery Time: 60 working days
Payment Terms: T/T, L/C,
Contact Now
Detailed Product Description

Technical parameter:

Thickness of stator lamination: 8mm-125mm
Min stator ID: Φ 30mm
Max outer diameter of stator: Φ 160mm
Max winding feeding rate: ≤ 80%
Input: 380V/ 50Hz
Air pressure: 0.5-0.8MPa
Power: 3.5KW
Machine productivity: 400pcs/ 8 hours
Dimension: 1800mm × 650mm × 1700 mm
Weight: ≈ 1000kg



Working video:

https://vimeo.com/108425117



Photo:

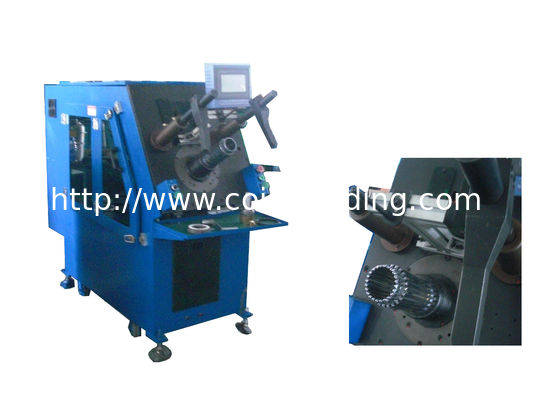

Stator Winding and wedge insertion machine install wedge 10mm and coils with servo system

Stator Winding and wedge insertion machine install wedge 10mm and coils with servo system



Contact:Emily

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com
