Machine For Installation Of Slot Insulation In The Stator Package For Alternators

China Machine For Installation Of Slot Insulation In The Stator Package For Alternators supplier
Machine For Installation Of Slot Insulation In The Stator Package For Alternators supplier Machine For Installation Of Slot Insulation In The Stator Package For Alternators supplier

Large Image :  Machine For Installation Of Slot Insulation In The Stator Package For Alternators

Product Details:

Place of Origin: slot insulation for electric motors China supplier
Brand Name: Wind Automation
Certification: Slot insulation barrier between the copper wndings and the steel lamination for stator
Model Number: paper inserting slot insulation

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: 6000 USD
Packaging Details: Polywood case
Payment Terms: T/T, L/C,
Detailed Product Description

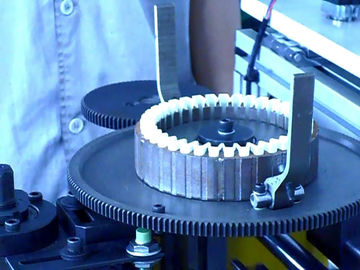

Machine For Installation Of Slot Insulation In The Stator Package For Alternators Photo:

Machine For Installation Of Slot Insulation In The Stator Package For Alternators

Machine For Installation Of Slot Insulation In The Stator Package For Alternators



Specification:

Laminated thickness of stator

Lamina espessura: 10mm-60mm

Max outer diameter of stator: Φ 160mm
Diameter of stator: Φ 40mm- Φ 80mm
Height of edge folded: 2.5mm-4mm
Max insulation paper's thickness: 0.35mm
Feeding length: 12mm-45mm
Tack time: 0.5-0.7s/slot
Input: 380V/50Hz
Power: 0.75KW
Machine productivity: around 1500pcs/8hours
Dimension: 1150mm × 1000mm × 1500mm

Weight: ≈ 400kg

Video:

https://vimeo.com/123102825

Insert insulation paper polyester to stator's slot to insulate the stator stack and winding.

Alta eficiencia, tecnología avanzada, estable performance.Help a reducir costes mientras mantienen la alta calidad
