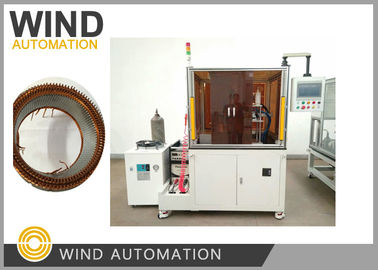

BSG Stator TIG Argon Arc Welding Machine Copper Conductor Ends TIG welding Star Starter Generator AssemblyWIND-TIG

Detailed Product Description
Welding Application: Integrated Starter Generator Assembly Automotive Technology: Stator Joint Tig Welding Application
PLC: Mitsubish 3U Series 4 Axis Servo Device: Welding Spindle,Indexing Spindle, Feeding Shaft And Lifing Shaft With Mitsubishi Servo Motor

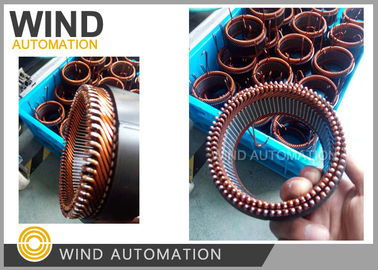

Copper Conductor Ends TIG welding Star  Starter Generator Assembly WIND-TIG-1







(1) Application:



Integrated Starter Generator assembly,







(2) Advantages:



Fusing Quality Assured



Achieve continuos, smooth weld bead.





Engineering Team

Supplied to several leading China manufacturers,rich experience
Easy to Operate



Easy for the operator









(3) TIG Welding feature:





Welding joint can be set,



the starting joint can be set,



and stand alone for welding amending can be set



The difference between TIG welding and resistance welding



Comparing resistance welding, below are the reason why we suggest TIG welding for stator rear side,

1. The conductors is not easy to clamp if use resistance welding

2. TIG welding is a kind of melting welding which have stronger connection of copper wire and copper wire,

3. Welding contacting resistance of TIG welding is smaller than resistance welding

4. All the three conductor's position are towards up in same way, it is easy to use TIG welding method,
Related pure electrical car also use TIG welding method

Any way, you may conduct the welding with resistance welding by yourself and compare the two method to get some other extened conclusions.

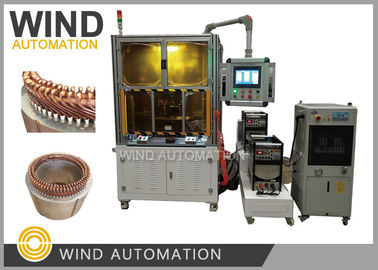

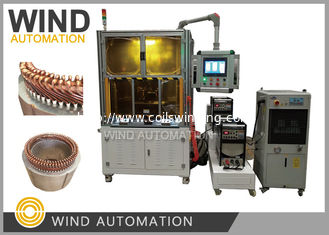

(4) TIG Welding fusing machine Parameter:



Power Supply: 220V or 380V,50Hz



Welding spindle,Indexing spindle, Feeding shaft and Lifing shaft with Mitsubishi servo motor



PLC: Mitsubish 3U series



Touch screen: Mitsubishi 7’’



Cylinder: Airtac



Pressure:>0.5MPa



Weight: around 600KGS



Dimenstion:800*800*1500mm





Please click below link to view video

https://youtu.be/5WwqTPLD_u4
