Wheel Motor Winding Machine: E-bike Dedicated Motor Stator Winder Brushless Hub Motor Winding: Muti Wires Winding Or Single Wire Winding For E-bike Motor With 24,36,48,62V
Winding Cycle Time: 2pcs/ 7minutes

WIND-HMW-2 Double station E-bike PMDC wheel motor winding Brushless hub motor stator winder muti coils winding machine wind the 15pcs parallel wires up to 0.51mm,  with 6,8,10,12,14,15 parallel wires for different voltage motor such as 24,36,48,62V



Winding method 254mm(10 inch in wheel motor) OD is 54slots,winding way 3-3-3-3-3-3
  305mm (12 inch in wheel motor) is 63slots, winding way 3-3-3-3-3-3-3
Wheel motor winding diagram Three - phase Y - type connection
Hub motor insulation paper's thickness 0.18~0.20mm




Advantages

Could save 6% to 15% copper wire, around  7 mintues per 2pcs



Parameter

Stator OD:40-265mm

Core length: 6-75mm

Slots Number: max 63

Max wires numbers winding at one time: 15 pieces

Time for stator winding: 54 slots, 11 pieces wire for one time winding, including loading/unloading, it takes 7 minutes for 2 pieces stator

Around 130pcs/ shift (8hours)



Configuration

PLC: DELTA

Winding servo motor: MITSUBISHI

Indexing servo motor: MITSUBISHI

Wire arraying servo motor: MITSUBISHI

HMI: DELTA

Buttons: SCHNEIDER



Video

http://www.vimeo.com/123941149

The machine working for this E-bike motor manfaucuring plant with prodution 90% percent pass

https://vimeo.com/143262581

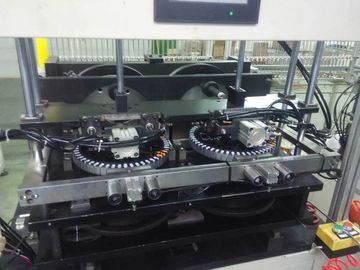

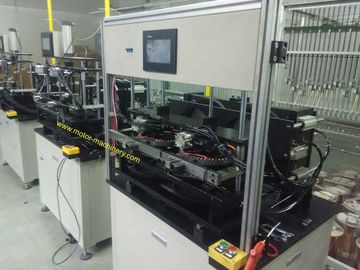

E-bike wheel motor winding brushless hub motor winding Photos:
