Stator assembly Concentrated coil assembly coil single side lacing coils binding machine

China Stator assembly Concentrated coil assembly coil single side lacing coils binding machine supplier
Stator assembly Concentrated coil assembly coil single side lacing coils binding machine supplier Stator assembly Concentrated coil assembly coil single side lacing coils binding machine supplier

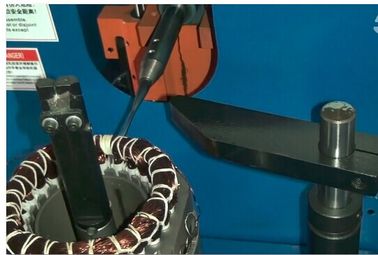

Large Image :  Stator assembly Concentrated coil assembly coil single side lacing coils binding machine

Product Details:

Place of Origin: Concentrated coil assembly lacing machine China
Brand Name: Wind Automation
Model Number: WIND-100-CL

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Contact Now
Detailed Product Description

Motor stator coil  assembly Concentrated coil assembly coil single side lacing coils binding machine WIND-100-CL

Parameter:
Thickness of stator lamination: 10mm-100mm
Min stator ID: Φ 35mm

Max coil height: 40mm
Max outer diameter of stator: Φ 160mm
Lacing speed: around 0.7s per slot
Power supply Input: 220V/50Hz,60Hz
Air pressure: 0.5 to 0.8MPa
Dimension: 1000mm × 600mm × 1150mm
Weight: ≈ 600kg

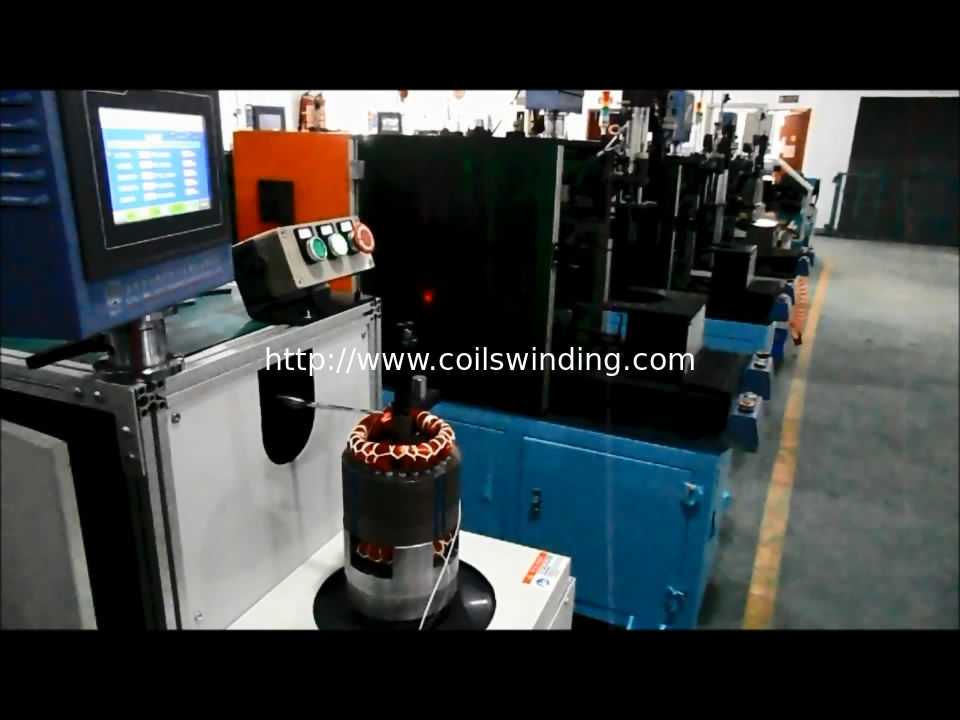

Engineer show the process to motor assembly user:

https://vimeo.com/127221008

http://youtu.be/Q6Xd4CuZFd4
