Star Delta Connection BLDC motor stator winder winding muti coils traction

China Star Delta Connection BLDC  motor stator winder  winding muti coils traction supplier
Star Delta Connection BLDC  motor stator winder  winding muti coils traction supplier Star Delta Connection BLDC  motor stator winder  winding muti coils traction supplier Star Delta Connection BLDC  motor stator winder  winding muti coils traction supplier

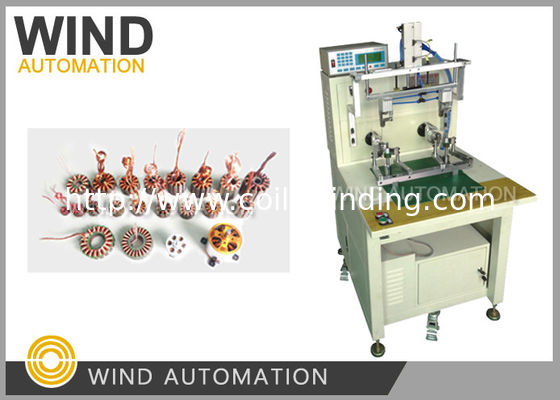

Large Image :  Star Delta Connection BLDC motor stator winder winding muti coils traction

Product Details:

Place of Origin: ebike motor winding China supplier
Brand Name: Wind Automation
Certification: BLDC E-bike winding muti coils winding
Model Number: electrical bike motor winding machine

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: In USD
Packaging Details: Polywood case
Delivery Time: 45 working days
Payment Terms: T/T is prefered, L/C is acccpetable
Supply Ability: Electric hub motor stator winding
Contact Now
Detailed Product Description

Strands Wire Flyer Winding 12-Tooth 24-Tooth 36-Tooth BLDC and PMAC Stators WIND-HMW-205D





Stator Winding Machine Application:



Stator flyer winding machine winding outrunner BLDC motors stators such as



BLDC and PMAC,Model stator, Fan stator, Ceiling fan stator,



Toy motor,Skateboard Wheel Motor Stator , Big size outside stator,



Drone stator,Airplane ,Aircraft Helicopter Motor Outrunner Stator



RC model aeroplane motors



Flyer Winder Question and Answer:

1. How much space does the flyer need between teeth and between two adjacent,

completely wound teeth?



The flyer winding machine need 2.8mm between teeth for 27 strands wires, 0.28mm size,

So 4mm slot width is enough



2. We need information as to what the minimum and maximum dimensions for stators are,

how the tooling needs to be changed/made for each stator type



As you may have types stators, the single station winder WIND-HMW-205S will be suitable,

The minimum and maximum dimensions for stators OD range is 12mm (0.48''), 12slots,

and 160mm(6.30''),



3. The goal for us is to wind stators that are most probably between (diameter) 80 mm and 350 mm,

stack height 15…100 mm



WIND-HMW-205S is designed to make small stators OD below 160mm,
It is not suitable to wind bigger stators,
Like a car can't work as a truck,
Another type of machine WIND-HMW-1M is for E-bike wheel motor winding,
that winder is designed for big wheel motor of Electrical bikes,



Flying Models Stator Winding Machine Advantages:



Winding type

CNC Flyer winding faster than needle winding



Smart machine easy to change tooling

A machine that do custom winding schemes to which you can test different kv values in your prototypes and low volume production runs.

A winding machine like the WIND-HMW-205D could save a lot of time from ordering custom winding scheme from a manufacturer.


Outrunner motors stator size

From 2slots to 24slots, other slots are custom made, the smallest outside diameter stator winding machine can wind is 12mm (0.48'' ) , 12slots, showed in below wound stator photo



Single wire or multi wires

Can wind stators with one wire or strands parellel wires



Muti wires handled

30pcs wires with 15pcs tensioners




Brushless Motor Outrunner stator flyer winding machine Parameter:



Wire diameter: 0.10~0.60mm (AWG18 ~ AWG23)



Operation option: Auto



Automatic winding, automatic indexing, automatic winding arranging, automatic clamping and cutting



Stator slot no. : 2 to 24slots (other slots custom made)



Wire displacement: 60mm



Power suplly: AC220V 50/60Hz



Weight: about 350KGS



Dimension: 1260(L)x650(W)x1150(H)mm



Controller: CNC300



The purpose of these windings is to create a magnetic field when a current is run through them



There are several different types of winding machines, from simple manual feed machines to complex



computer-numeric-control (CNC) machines. Some of the more common uses for winding machines are coil



winding, rope winding, and continuous winding. Many industries use these devices,



including electronics,stator,rotor and armature of motor production and wire industries.



Below samples and drawing are needed for machine manufacturing and commissioning:



1. Stator stack 5pcs without winding



2. Wound stator 1pc



3. Copper wire 1 roll enough for winding 10pcs stators



4. Stator lamination drawing and winding drawing







Please click below link to view video of strands wires stator winder



https://vimeo.com/292046631
