Stator Hot Dip Powder Coating Equipment For Motor Stator Insulation
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

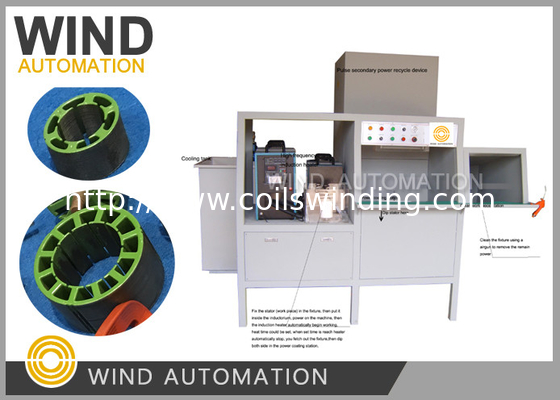

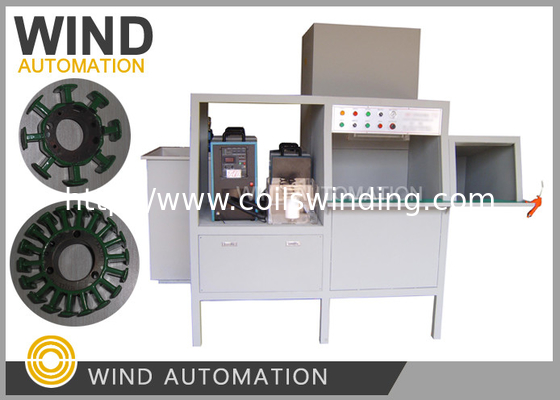

Stator hot dip power coating machine WIND-DZRT-S
1. Machine is composed of heating,powder coating,powder cleaner and
powder recycle system with nice appearance and reasonable configuration,
the machine frame is made of 1.2mm A3 steel plate,
2. High frequency indution heater have the advantage of fast heating,
low energy, safety and reliability
3. Air blowing ensure well done in cleaning fixtures
4. Cooling on high frequency induction heater is freezing style water cooler
tank, it is well cooling
IV Machine configuration
Machine dimension L2100×W1720×H2100 mm
1. 40KW high frequency induction heater 1PC
With Φ120mm inductorium 1PC
2. Cooling tank 1PC
With size L1000×W1000×H1000mm
3. 0.37KW Cooling water pump
4. Powder coating chamber 1SET
5. Powder recycle system (on back side of powder coating chamber) 1PC
V Power composition
Power : 12KW 380V±10%,50HZ
Compressed air : 0.3 m³/min 0.6Mpa
