Coils Embedded Machine In The Slots For Stator Of Induction Motor

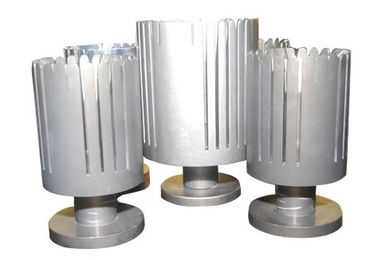

Large Image : Coils Embedded Machine In The Slots For Stator Of Induction Motor

Product Details:

Place of Origin:	Chinese machine for producing electric motor
Brand Name:	Wind Automation
Model Number:	Coil embedded machine

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD
Packaging Details:	Polywood case
Delivery Time:	45 working days
Payment Terms:	T/T, L/C,
Supply Ability:	200 sets per year

Contact Now

Detailed Product Description

Coils embedded in the slots for stator of induction motor ,

insert the wires and wedge to slots by servo system,

Suitable for induction motor which is with concentric winding method,

Technical parameter:

Thickness of stator lamination: 8mm-125mm
Min stator ID: Φ 30mm
Max outer diameter of stator: Φ 160mm
Max winding feeding rate: ≤ 80%
Input: 380V/ 50Hz
Air pressure: 0.5-0.8MPa
Power: 3.5KW
Machine productivity: 400pcs/ 8 hours
Dimension: 1800mm × 650mm × 1700 mm
Weight: ≈ 1000kg

Video:

vimeo.com/108425117

Contact:EmilyGao

Email:emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: www.motor-machinery.com;www.coilswinding.com

Wedge and winding insertion machine WIND-90-CWI for induction motor Wind Automation from EmilyGao of coils winding supply on Vimeo.
