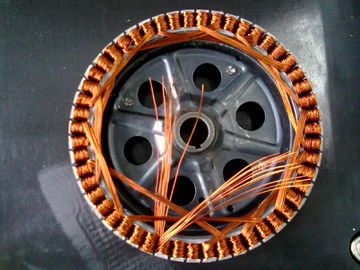

Electric Bike Motor Stator Winding Motorcycle Coil Winding Needle Winding Winding Winder
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Double station E-bike motor winding machine
Suitable for winding wheel motor,magneto,ventilate device,ventilator external stator,
Fully automatic winding,arraying,indexing,taping,clamping wire,could save 6% to 15% copper wire,
use PLC and Panasonic servo control system, can set and read data on touch screen,
the winding performance is with stable good quality.
Main Data:
Stator OD range: 40 to 265mm
Stator stack height: 6 to 75mm
Wire diameter: 0.10mm to 0.6mm,0.6mm to 1.0mm,0.51mm
Slots: below 63
Rated speed: 2100RPM
Air pressure: 0.6Mpa
Pneumatic parts: SMC and Airtac
Electrical parts: Panasonic servo motor, Schneider low voltage apparatus
Power Supply: 220V,50Hz/60Hz
Feature:
1. Three axis servo system,the winding,indexing,arraying are controlled by servo motor
2. Two working station wind at same time to improve the efficiency, for example, two wind the
Litz wire 7pcs, 8 turns no, the machine can finish the job in 6 minutes,
The winding widely used are 7*8, 8*8,12*5,9*10
Machine demo video:
Contact:Emily
Email:emily@motor-machinery.com
Skype: motor.machinery
Mobile: +86-18067425780
