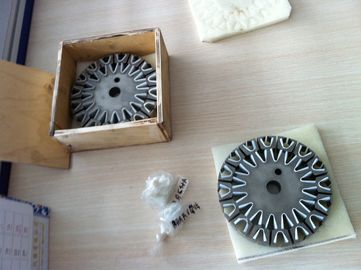

Ceiling fan stator winding machine

Large Image : Ceiling fan stator winding machine

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD
Packaging Details:	Polywood case
Delivery Time:	45 working days
Payment Terms:	T/T, L/C,

Contact Now

Detailed Product Description

Suitable for winding ceiling fan stator, wind internal , external slots,

Main technical data:
Application: suitable for winding ceiling fan stator, external armature such as frequency conversion alternator and generator armature.
Features: The machine has two working stations. Controlled by micro computer, it could realize auto winding, auto allay, auto indexing; allay and indexing is controlled by stepping motor, winding is controlled by frequency converting motor, turn number could be accurate up to 0.1 round.
Wire diameter: 0.05-0.45mm
Stator O.D: 100mm-163mm
Stack height: 6-30mm
Slot number: less than 24 slots
RPM: 2500RPM Max
Voltage: 220v/50Hz, or customize
Power: AC 1.5kw
Weight: 135kgs

Dimension: 1350mm*630mm*1130mm

The video for an Argentina customer dated Oct 20,2013

https://vimeo.com/123992978
