Armature Tester For Starter Motor Bar To Bar Resistance Welding Resistance 180° Cross Resistance Isolation Resis Surge

We are very happy with the machines!

—— Efrain.Alvarado

We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

Thank you so much!

—— Alain Vadrot

I think the segments look great, excellent layering

—— Paul

I'm Online Chat Now

Armature Tester For Starter Motor Bar To Bar Resistance Welding Resistance 180° Cross Resistance Isolation Resis Surge

China Armature Tester For Starter Motor Bar To Bar Resistance Welding Resistance  180° Cross Resistance Isolation Resis Surge supplier
Armature Tester For Starter Motor Bar To Bar Resistance Welding Resistance  180° Cross Resistance Isolation Resis Surge supplier Armature Tester For Starter Motor Bar To Bar Resistance Welding Resistance  180° Cross Resistance Isolation Resis Surge supplier Armature Tester For Starter Motor Bar To Bar Resistance Welding Resistance  180° Cross Resistance Isolation Resis Surge supplier Armature Tester For Starter Motor Bar To Bar Resistance Welding Resistance  180° Cross Resistance Isolation Resis Surge supplier

Large Image :  Armature Tester For Starter Motor Bar To Bar Resistance Welding Resistance 180° Cross Resistance Isolation Resis Surge

Product Details:

Place of Origin: CN
Brand Name: Wind Automation
Model Number: WIND-ATS-02
Detailed Product Description
Resistance Test: 1. Bar To Bar Resistance 2. Welding Resistance 3. 180° Cross Resistance 4. Isolation Resistance Surge: Surge (Between The Turns Of The Coils, Comparing Waveforms)
Hi-pot: Hi-pot (High Voltage Between The Coils And Armature Stack Core) Testing Motor: Starter Armature

Starter armature tester test below items



1. Bar to bar resistance (Inter-chip resistance of two commutator bars)

2. Welding resistance (To check the welding quality, the smaller the better)

3. 180° Cross resistance (Bar to bar resistance of commutator which is 180° angle with opposite side)

4. Surge (Between the turns of the coils, comparing waveforms)

5. Isolation resistance (Resistance of the coils and stack core)

6. Hi-pot (High voltage between the coils and armature stack core)


Starter armature types

Below 36Bars, armatures such as

13, 17, 19 (few), 21,23,25,27, 28,29,33slots (common)

Positioning type Auto, don't need to put on the armature in specified position
Testing panel cycle time:  8~9s (according to 33bars)









Test Items Test Description Test result
Bar to Bar resistance 0.01mΩ~10mΩ ≤±0.5% Full scale
Welding resistance 0.01mΩ-10mΩ ±10μΩ
180℃ cross resistance 0.01mΩ-10mΩ ≤±1.5% Full scale
Surge 100-1000Vpp (Max 36sets waveform) ±5%
Isolation resistance DC 500V

0.1-500MΩ

≤±5% Full scale

Hipot AC 100-1000V

0-20mA

≤±.5% Full scale

Feature:

1. Bar to Bar resistance,0.01mΩ~10mΩ (Out of range display OVER)

Four-terminal measurement to ensure accuracy

2. Welding resistance,0.001mΩ-10mΩ (Out of range display OVER)

Six-terminal measurement to ensure accuracy

3. Cross resistance 0.01mΩ-10mΩ

Four-terminal measurement to ensure accuracy

4. Surge 100-1000V (100V/time)

Pulse crest:0.5u sec, Frequency 1~40MHz

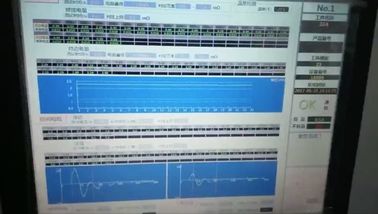

Standard waveform is Write, OK waveform is Green, NG waveform is Red

5. Isolation resistance DC 500V

Testing time:1~10s (0.1s/time)

Range:1~500MΩ

Accuracy: ≤±5%

6. Hipot AC 100-1000V

Testing time:1~10s (0.1s/time)

Armature commutator bars ≤ 36 bars

Testing panel cycle time: 8~9s (according to 33bars)

Armature Tester For Starter Motor Bar To Bar Resistance Welding Resistance  180° Cross Resistance Isolation Resis Surge



Main Configuration

15’’ Touch screen Sampling Chip: BB Relay:NAIS High voltage relay:Meder

Pneumatic parts:Airtec

Armature Tester For Starter Motor Bar To Bar Resistance Welding Resistance  180° Cross Resistance Isolation Resis Surge

Armature Tester For Starter Motor Bar To Bar Resistance Welding Resistance  180° Cross Resistance Isolation Resis Surge

Starter armature testing panel

Armature Tester For Starter Motor Bar To Bar Resistance Welding Resistance  180° Cross Resistance Isolation Resis Surge



Power: AC 220V,50Hz

Air pressure:0.4~0.6MPa

Temperature:0~45℃

Dimension: 950mm*1250mm*580mm

HS Code:9030390000
