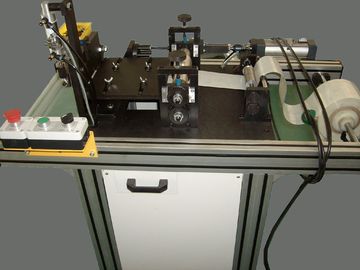

S B Type Paper forming for Amature Insulation paper forming and cutting machine

Form and cut the insulation paper for universal motor stator, cell insulation such as mixer,grinder,power tools,

Main technical data:

Armature O.D: Ф20-55mm

Length of lamination: Max 60mm

Parameter:

Shaft length: 32~250mm

Shaft O.D: Ф6~Ф20mm

Slot number: 8-24 slots

Commutator O.D: Ф16~Ф50mm

Speed regulation range: 0~60Hz

Length of insulation paper: 15-60mm adjustable

Thickness of insulation paper: 0.1 mm ~ 0.5 mm

Type of insulation material: DMD, DM, Polyester film(thickness 0.125mm), etc.

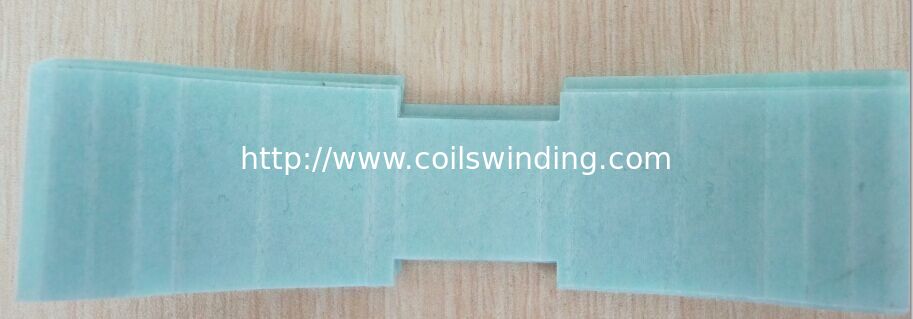

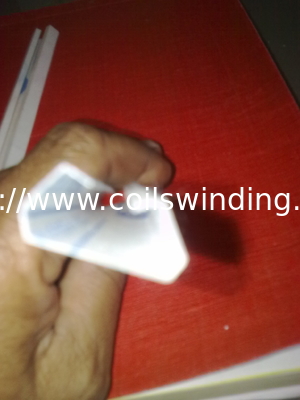

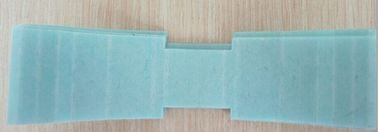

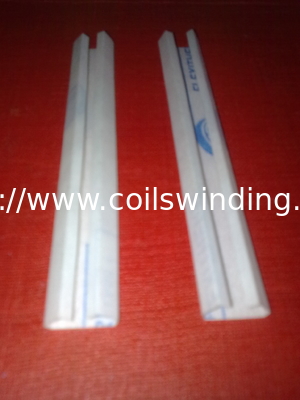

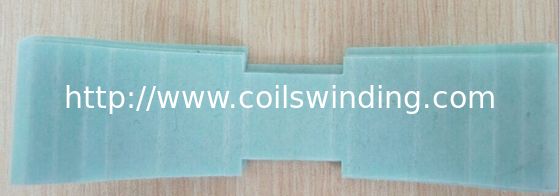

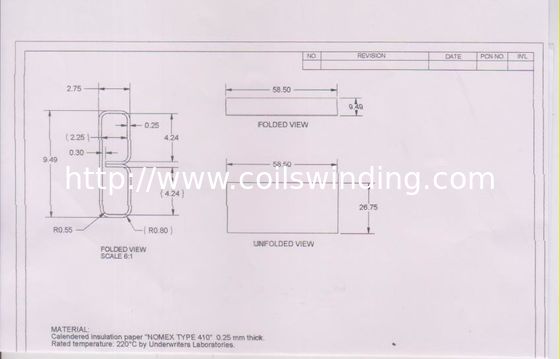

Insulation paper shape: V or edge-folding V

Efficiency: 0.5sec - 0.8sec/per slot, loading
