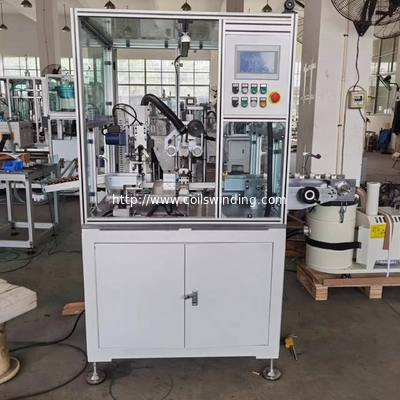

Armature commutator turning machine DC excited motor rotor turning lathe commutator

China Armature commutator turning machine DC excited motor rotor turning lathe commutator supplier

Large Image :  Armature commutator turning machine DC excited motor rotor turning lathe commutator

Product Details:

Place of Origin: Three axis precise turning lathe commutator surface machine from China
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: WIND-3A-PL

Payment & Shipping Terms:

Minimum Order Quantity: 1pc precise commutator face turning lathing
Price: USD
Packaging Details: Polywood case
Contact Now
Detailed Product Description
Commutator Turning Machine: Three Axis Servo Motor Drive Small DC Armature Handled: Window Lifter Small Armature Commutator OD 7mm, Shaft OD 3.0mm
Cutter: Single Cutter Or Double Blades With Different Turning Direction

Armature manufacturning machine DC excited motor rotor turning lathe commutator suface precise turning machine   WIND-3A-PL  with servo system three axis

Purpose:

Turning and milling the surface of commutator to let it polish and shining, commutator turning and burr remover can help the commutator work well with carbon brush.

Parameter data:

Commutator roundness: ≤0.005mm(depends on user’s commutator material, armature shaft quality and bearing

position quality)

Roughness: ≤Ra 0.4(depends on customer’s armature quality)

Armature OD: Ф20~Ф82mm

Shaft length: 32~250mm

Shaft OD: Ф3~Ф16mm

Commutator OD: Ф8~Ф40mm

(Other size custom made machine window lifter small armature commutator OD 7mm)

Max. cutting volume: first cut—rough cutting Max 0.15mm(in diameter direction of commutator)

Speed regulation range: 0~60Hz

Z direction cutter feeding speed: settable on touch screen, stepless adjustable

Z direction cutter returning speed: set on program

X direction cutter feeding speed: settable on touch screen, stepless adjustable

X direction cutter returning speed: set on program

Z direction cutting length: settable on touch screen, Max. could set 4times different cutting length(Max 30mm)

Z direction travelling: Max 50mm

Production efficiency: whole cycle≤12sec/pc(twice cutting)

Air pressure: 4~6kg/cm2

Fixture: diamond V shape journal

Total power: 2.2KW

Machine power: 50/60Hz AC230V±10%(single phase)

Burring removing machine power: 50/60Hz AC230V±10%(single phase)

Vacuum cleaner power: 50/60Hz AC380V±10%(three phase)

Weight: about 1,100Kg

Machine dimension: 1,100mm x 1100 mm x 1,830mm3

HS Code:84581100
