Automatic Armature Rotor Stacks Electrostatic Powder Coating Machine AKZO NOBEL Resin Insulation

China Automatic Armature Rotor Stacks Electrostatic Powder Coating Machine AKZO NOBEL Resin Insulation supplier
Automatic Armature Rotor Stacks Electrostatic Powder Coating Machine AKZO NOBEL Resin Insulation supplier Automatic Armature Rotor Stacks Electrostatic Powder Coating Machine AKZO NOBEL Resin Insulation supplier Automatic Armature Rotor Stacks Electrostatic Powder Coating Machine AKZO NOBEL Resin Insulation supplier Automatic Armature Rotor Stacks Electrostatic Powder Coating Machine AKZO NOBEL Resin Insulation supplier

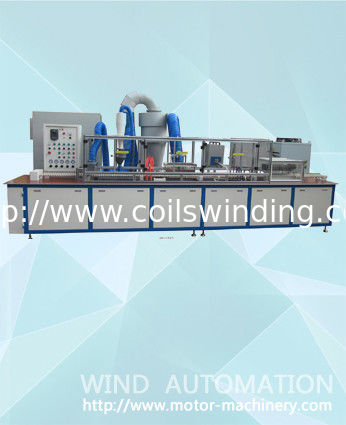

Large Image :  Automatic Armature Rotor Stacks Electrostatic Powder Coating Machine AKZO NOBEL Resin Insulation

Product Details:

Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: WIND-JF-98GG

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Delivery Time: 45 working days
Payment Terms: T/T, L/C,
Contact Now
Detailed Product Description
Armature Manufacturing Machine: Armature Stack Electrostatic Powder Caoting Machine Automatic Powder Coating Machine: Screw Rod Move Drive The Armature Move Forward
Resin Insulation: High Frequency Deoil---fan Cooling---coating---outside Powder Clearning---curing---air Cooling Application: Automotive Applications (vehicle Components)—ABS, HVAC, Window Lift, Seat Adjust, Sunroof And Antenna, Windshield Wiper And Fuel Pump

Question & Answer:

I am thinking of putting a machine for coating armatures of the size

Stack dia upto 150 mm --- Stack dia between 60mm ~80mm, machine coating quality can be Max. achieved
Stack thickness upto 25 mm --- Thickness can be upto 45mm
Shaft length upto 180 mm
Shaft dia upto 20 mm
Production upto 1000 pcs per hour --- Production is related to armature, for example, the armature stack dia 40mm, with 4 operators, can achieve 1000pcs per hour





Armature rotor stacks electrostatic Powder coating machine  WIND-JF series electro static powder coating machine is the most advanced technology product in electrostatic coating field, which is widely used in micro rotor insulating coating, such as automotive application vehicle components ABS,HVAC,window lift, seat adjust,sunroof and antenna, windshield wiper and fuel pump,

motorcycle, electric bicycle, toy and small electromotor of home appliances.

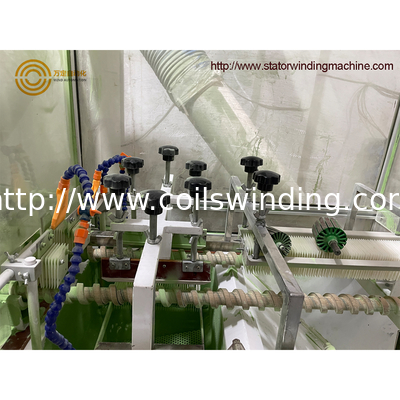

Its working process: rotor is transferred to fluidizing bed by screw for coating. Isolation power is evenly coated on its surface, and then cured by high frequency heating. Video film for window lifer armature production
It is composed of pre-heating zone, cooling zone, coating zone and curing zone.
Parameter:
Armature OD: by customer drawing
Core length: by customer drawing
Shaft length: by customer drawing
Output: by customer request
Coating thickness: 0.15-0.5mm adjustable
Armature transfer speed: 0.1-15.meters per minute



Model

100

80GG

80GD

50H

Lab model


note

Part size

Max OD

160

120

120

100

200

Is able to be tailored produced

Max core length

50

50

50

50

80

Max shaft length

180

180

180

180

180

transfer speed m/min

0.1-1.5

0.1-1.5

0.1-1.5

0.1-1.5

Electronic driving

Stepless adjustable

output(pc/h)

2500

1500

1500

800

10-60

фMax≤20mm

Curing method


High frequency


High frequency


  High frequency

Curing oven


Curing
oven

Oven is prepared by customer

Coating thickness(mm)

Adjustable within 0.15-0.5


Above parameter is only for reference

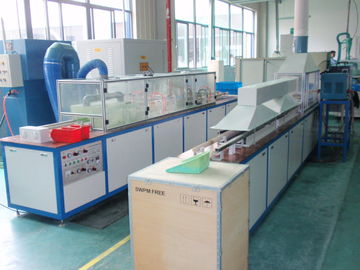

Automatic armature electrostatic powder resin coating machine ready for shipment

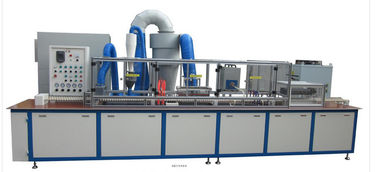

Automatic Armature Rotor Stacks Electrostatic Powder Coating Machine AKZO NOBEL Resin Insulation

Video:
https://vimeo.com/144614641
