Armature wedge inserting wedge paper fillers insulation wedge placement machine

China Armature wedge inserting  wedge paper fillers insulation wedge placement machine supplier

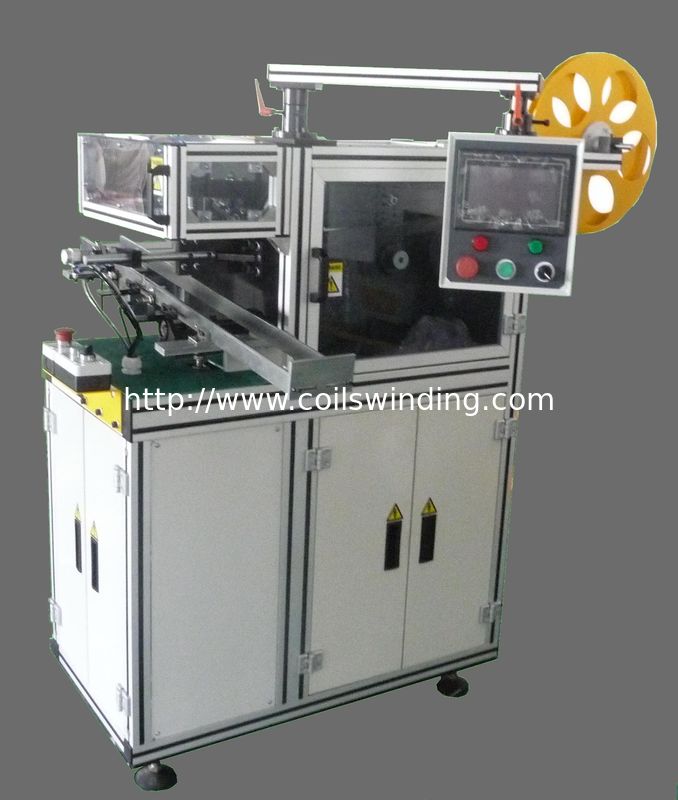

Large Image :  Armature wedge inserting wedge paper fillers insulation wedge placement machine

Product Details:

Place of Origin: Chinese machine for producing aramture of DC electric motor
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: stator winding, armature winding, welding

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Contact Now
Detailed Product Description

Advantages:

Around  8~10sec per pc for 12 slots armature

Continue operation for 3 shifts,

Automatically loading and unloading armatures

Easy to adjust and operate.



Configuration:

PLC: MITSUBISHI or Omron programmable controller
Relay: OMRON
Proximity switch: OMRON
MITSUBISHI or Panasonic frequency converter
Touch screen: WENVIEW PLD(7")
Air switch: MITSUBISHI
Power source: Mingwei
Switch: SCHNEIDER
Brake: MIKIPULLEY (Japan brand)
Ball bearing: UBC (USA brand)
Linear guide: ABBA (Taiwan brand) or CPC or Shangying
Cylinder: SMC
Air source treatment elements or electromagnetic valve: SMC



Technical data:
Armature O. D: 20-55mm
Length of lamination: Max 60mm
Shaft length: 32~250mm
Shaft O. D: 6~20mm
Slot number: 8-24 slots
Commutator O. D: 16~50mm
Length of wedge: 15-60mm
Speed regulation range: 0~60Hz
Wedge shape: Flat, U or R shape
Thickness of wedge: 0.2 mm ~ 2.0 mm
Efficiency: 0.5sec - 0.8sec/per slot, loading-Clamp Feeding-unloading (total 8~10sec/cycle for 12 slots armature)
Air source: Air pressure: 4~6kg/cm2
Machine power: 1.0KW
Tooling/fixture: Fast changing integrity forming wheel structure
Voltage: AC220V± 10%, 50/60Hz
Weight: About 400Kg
Dimension: (L)910 x (W)880 x (H)1300mm



Features:

Could store production parameter for 100nos armatures;Display production data, including shift output, consuming time, etc;During machine running, the machine will alarm once anything abnormal occurs;Three operation modes could be switched: JOG, automatic and stepping,



Application and related photo:

Place insert the insulation wedge to armature, insulate the armature winding and stacks,

also fixten the armature windings.After winding, use thick wedge normally 0.5mm

while insulaiton polyester is usually 0.25mm to insert to armature,

tight the armature and strength the winding and reduce motor noise​.

Armature wedge inserting  wedge paper fillers insulation wedge placement machine

Armature wedge inserting  wedge paper fillers insulation wedge placement machine



Armature wedge inserting  wedge paper fillers insulation wedge placement machine
